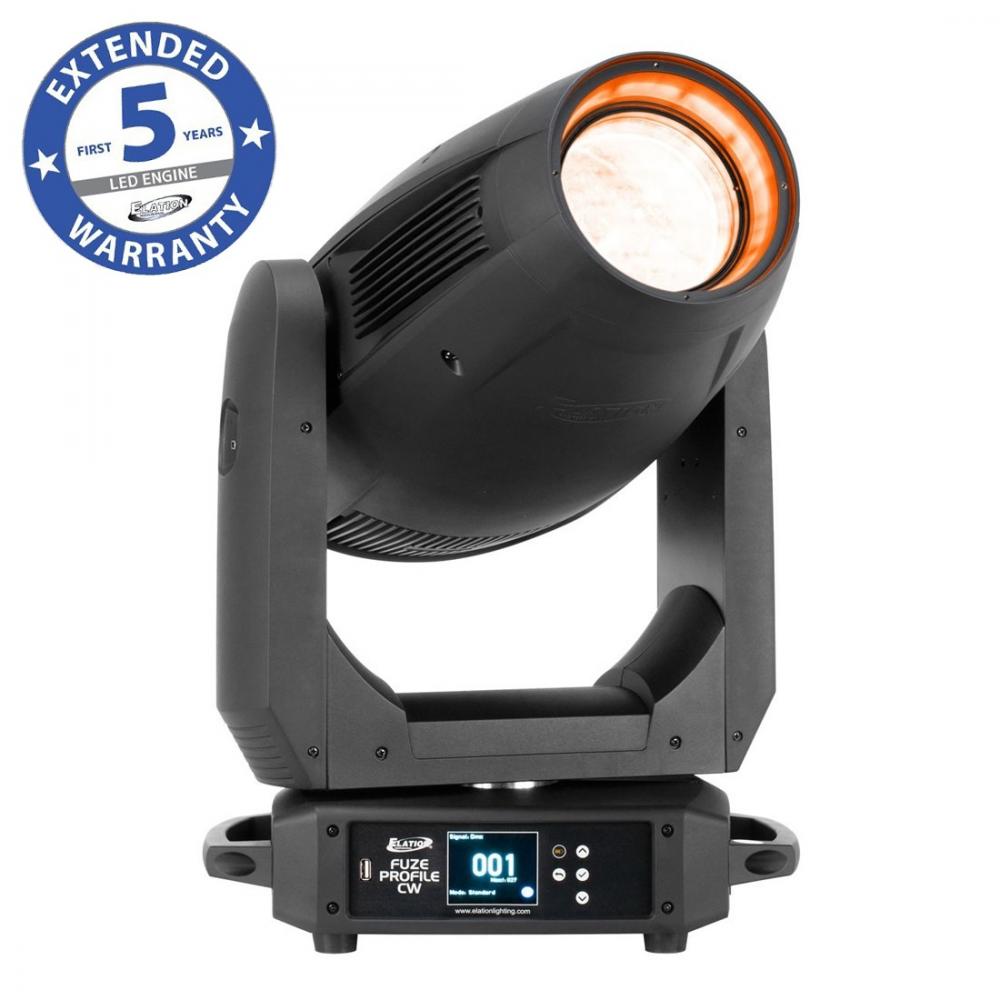

The Fuze Profile CW™ is an automated LED framing fixture designed for tradeshows, stages, television and a wide array of AV event applications. The 91CRI 380W engine ensures accurate color reproduction while delivering a powerful output of over 11.000 lumens. Designed to illuminate objects like exhibits and banners, texture areas and keylight persons with its flat field and accurate framing, it has many practical applications where a fully automated ellipsoidal fixture is required. A rotating gobo wheel of breakups, two color wheels featuring solid colors and correction filters plus and Iris round out its comprehensive feature set.
GAEB
TEXT
|
short summary |
The Fuze Profile CW is an automated LED framing luminaire with cold white LED engine designed for trade show, stages, television, AV event applications or anywhere a fully automated ellipsoidal fixture is required.
|
product type |
Moving Light LED Profile
|
product code |
1237000210
|
order code |
1237000210
|
product description |
FEATURES High Efficiency 380W White LED Engine, 91CRI Dual Color Wheel (Solids and Color Corrections) Rotating Gobo Wheel Full Blackout Framing System Iris and Frost Wide Zoom Range from 9° to 43° SOURCE 380W 6,000K White LED Engine 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming. PHOTOMETRIC DATA 11,200 Total Lumen Output CRI 91 Zoom Range 9° - 43° Beam Angle 9.3° - 43.1° Field Angle 10.3° - 46.8° EFFECTS Motorized Zoom 4 Rotating Full Blackout Framing Blades, +/- 60 Index Variable Frost Filter Motorized Iris Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe Adjustable LED Refresh Rate Frequency COLOR 2 Color Wheels 7x Solid Colors 7x Color Correction and UV GOBOS 1 Gobo Wheel 7 Rotating / Indexing Interchangeable Glass Gobos CONTROL / CONNECTIONS 2 DMX Channel Modes (26 / 40) 16-bit Pan, Tilt, and Dimming Control Motorized Focus DMX, RDM Protocol Support 4 Button Touch Control Panel Full Color 180° Reversible LCD Menu Display 16 Bit Resolution Adjustable Movement Hibernation Mode (Power Save) 5pin DMX In/Out IP65 Locking Power Cable In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 15.9" (408mm) Width: 9.9" (252mm) Vertical Height: 27.4" (698mm) Weight: 51.4 lbs. (23.3kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 590W Max Power Consumption 14°F to 113°F (-10°C to 45°C) BTU/hr (+/- 10%) 2011.9 |
short, neutral tender spec text |
The luminaire shall be a yoke moving head with 380W (6,000K) White LED engine and CRI of 91. Lumen output shall be over 11,000 and the luminaire shall operate flicker-free with an average LED life of 30,000 hours. LED refresh rate frequency shall be adjustable and the luminaire shall include a power saving hibernation mode. It shall include a color wheel with 7 solid colors and a color wheel with 7 color correction and UV slots. The luminaire shall include 4 rotating full-blackout framing blades (+/- 60 Index). A motorized 9 to 43 degree zoom shall be included. It shall house 7 rotating, indexing, interchangeable glass gobos. A motorized focus, motorized iris and high speed electronic shutter and strobe shall be included. A variable frost filter shall be included as well as variable 16-bit dimming curve modes. Pan, tilt and dimming control shall be 16-bit. The luminaire shall operate via DMX and RDM protocols and include 5-pin DMX in/out and Locking Power in/out connections. The luminaire shall have a 4-button touch control panel and 180° reversible full-color LCD menu display. Max power consumption shall be 590W and a multi-voltage universal auto switching power supply shall be included. It shall measure 408mm x 252mm x 698mm (LxWxH) and weigh 23.3 kg. GAEB TEXT |
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
no
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
26 ch
|
control channels, max |
40 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
no
|
Electrical | |
power consumption amps, max |
2.46 A
|
power consumption watt, max |
590.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
built-in dimmer |
LED PWM
|
power input connector |
Truecon
|
cooling |
active
|
power output connector |
Truecon
|
external PSU |
no
|
Mechanical | |
weight |
23.30 kg
|
width |
252.00 mm
|
height |
698.00 mm
|
length |
408.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
output lumen, max |
11200 lm
|
beam angle/zoom, min |
9.00 °
|
beam angle/zoom, max |
43.00 °
|
light source |
LED
|
Number of light sources |
1 pcs
|
wattage per light source |
380.00 W
|
optics/projection type |
Profiler
|
multichip LED |
no
|
number of separate pixel zones |
1
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
yes
|
iris min |
5 %
|
iris max |
100 %
|
color temperature, min |
2700 K
|
color temperature, max |
8000 K
|
secondary light source |
none
|
drop-in frosts |
1 pcs
|
max CRI |
91 CRI
|
out lumen in silent mode. Max |
11200 lm
|
beam shape |
round
|
WARM WHITE LED source |
no
|
COLD WHITE LED source |
yes
|
RED light source |
no
|
GREEN light source |
no
|
BLUE light source |
no
|
UV light source |
no
|
AMBER light source |
no
|
YELLOW light source |
no
|
CYAN light source |
no
|
fixed/virtual colorwheels |
2 pcs
|
gobowheels total |
1 pcs
|
rotating gobowheels |
1 pcs
|
number of rotating gobos |
7 pcs
|
beam shapers/framing/barndoors |
yes
|
shaper rotation range degrees |
120 °
|
prism |
yes
|
other beam effects |
no
|
separate CTO wheel |
yes
|
prism morphing |
no
|
Luminous efficacy |
34.21 lm/W
|
COLD WHITE LED color temp |
6000 K
|
