tender specification text |
The TVL CYC RGBW™ theatre style luminaire delivers a smooth and even field of seamlessly blended colors onto cycloramas, backcloths, scenery or any surface. It features a 150W COB RGBW LED engine, a 90° x 113° elliptical beam angle, 8-leaf adjustable/removable barn doors, smooth color mixing and dimming, adjustable refresh frequency and gamma brightness, linear variable white color temperature presets (2,700K – 3,200K), strobe effects, variable dimming curves, DMX, RDM (Remote Device Management), 5pin DMX in/out and powerCON in/out connections, flicker free operation for TV and Film, an LCD menu display with 4 button control panel, 180° reversible LCD menu display, 170W max power consumption and a multi-voltage universal auto switching power supply (100-240V).
GAEB
TEXT
|
short summary |
The TVL CYC RGBW™ is a theatre-style cyclorama wall wash luminaire that delivers a smooth and even field of seamlessly blended colors or variable white light onto cycloramas, backcloths, scenery or any surface.
|
product type |

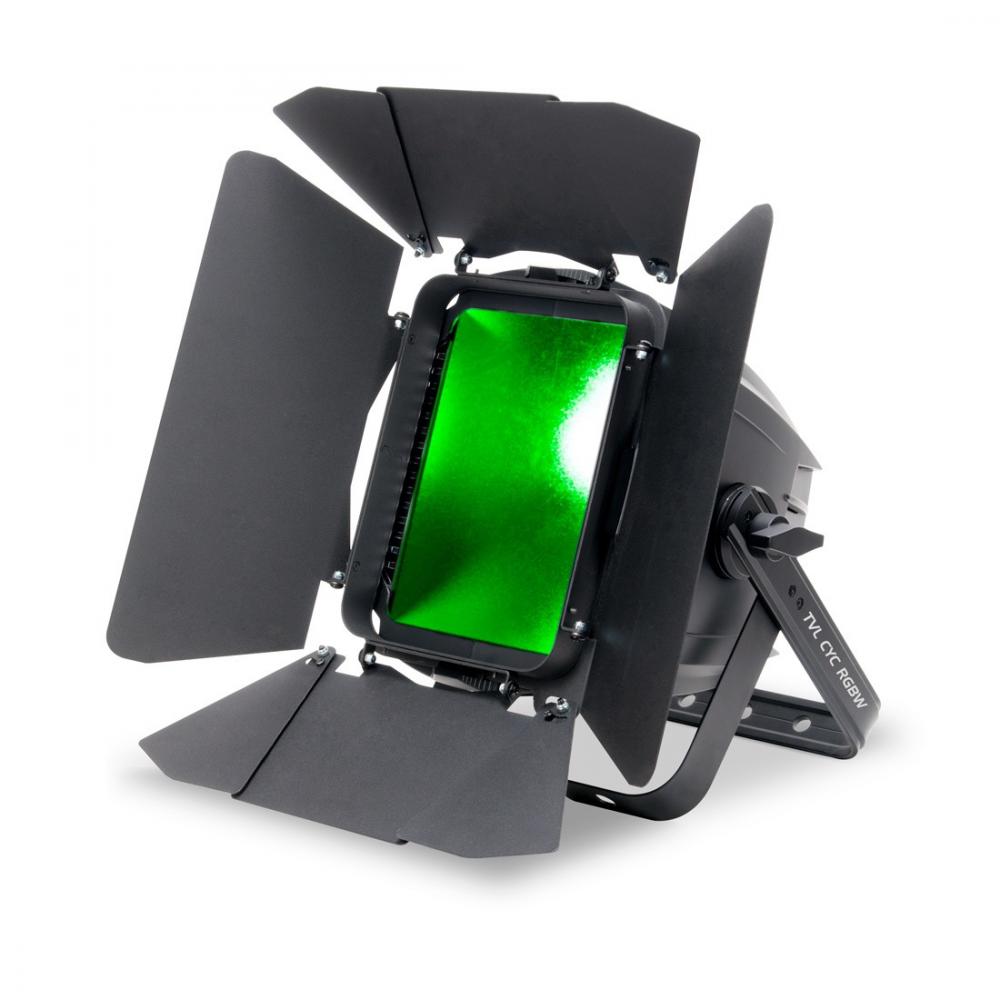

LED Cyclorama Light
|
short, neutral tender spec text |
The luminaire shall be a wall wash luminaire with a 150W COB RGBW LED engine. It shall operate flicker-free and have smooth flicker-free dimming (0-100%) with variable dimming curves. The luminaire shall be capable of emitting 3,536 LUX @ 1m and emit light at a 90° x 113° elliptical beam angle. The unit shall include linear variable white color temperature presets from 2,700K – 3,200K. 8-leaf adjustable/removable barn doors shall be included. The luminaire shall operate silently and have no fans. LED refresh rate and gamma brightness shall be adjustable. Strobe effects shall be possible. The luminaire shall be controllable via DMX and RDM and include 5-pin DMX In/Out and powerCON TRUE1 in connections. A 4-button touch control panel with 180° reversible LCD menu display shall be included. Max power consumption shall be 170W and a multi-voltage universal auto switching power supply shall be included. It shall measure 425mm x 364mm x 419mm (LxWxH) and weigh 5.9 kg.
GAEB
TEXT
|
product code |
1236300070
|
order code |
1236300070
|
product description |
FEATURES
150W COB RGBW LED Engine 90° x 113° Elliptical Beam Angle Adjustable Refresh Frequency and Gamma Brightness 8-Leaf Adjustable Barn Doors Included Multiple Unit Power Linking Variable Dimming Curves Flicker Free Operation for TV and Film RDM – Remote Device Management SOURCE 150W COB RGBW LED 20,000 Hour Average LED Life* PHOTOMETRIC DATA 3,536 LUX 328 FC @ 3.3’ (1m) EFFECTS Strobe: 1-18fps Dimming: 0% - 100% Variable Dimming Curves COLOR RGBW Color Mixing CONTROL / CONNECTIONS (6) DMX Channel Modes (4 / 6 / 7 / 8 / 10 / 14) Adjustable Refresh Rate Adjustable Gamma Brightness 4 Button Touch Control Panel 180° Reversible LCD Menu Display 5pin DMX In/Out powerCON Power In/Out SIZE / WEIGHT Length: 16.7” (425mm) Width: 14.3” (364mm) Vertical Height: 16.5” (419mm) Weight: 13.0 lbs. (5,9 kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 170W Max Power Consumption Multiple Units Power Linkable 5F to 113°F (-15°C to 45°C) INCLUDED ITEMS Barn Doors *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
product link | |
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
Control | |
control channels, min |
4 ch
|
control channels, max |
14 ch
|
max Dimmer resolution |
16 bit
|
Electrical | |
power consumption amps, max |
0.71 A
|
power consumption watt, max |
170.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-15.00 °C
|
operating temp, max |
45.00 °C
|
PWM rate |
25000.00
|
Mechanical | |
weight |
5.90 kg
|
width |
364.00 mm
|
height |
419.00 mm
|
length |
425.00 mm
|
shipping weight |
7.26 kg
|
Optical | |
Number of light sources |
1 pcs
|
wattage per light source |
150.00 W
|
beam angle horizontal |
90 °
|
beam angle vertical |
113 °
|
shutter/strobe frequency, max |
18 Hz
|
