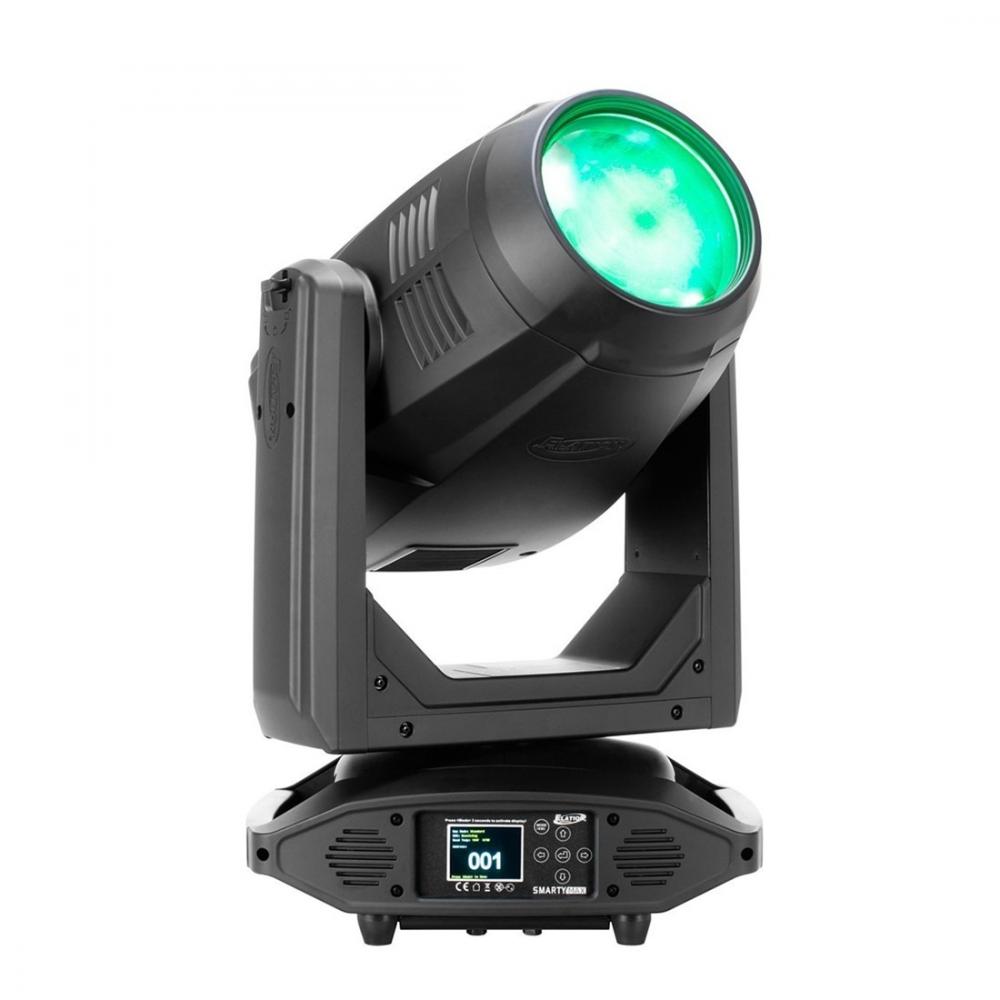

The SMARTY MAX™ combines high output and long lamp life in a feature packed compact and lightweight Hybrid fixture. SMARTY MAX is the Extreme Output Hybrid featuring the new Philips MSD Platinum FLEX 400 lamp. Rated at 480W and up to 4,000 hours smart lamp life the SMARTY MAX includes CMY and variable CTO and is the world’s first Hybrid incorporating a full Iris for dynamic beam effects. Four prisms on two planes, dual frosts plus dual gobo wheel and animation round out this package in a compact and lightweight housing. Delivering 21,000 lumens from its large 160mm front aperture, the SMARTY MAX has the output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application while providing an excellent return on investment.
GAEB
TEXT
|
short summary |
The Smarty MAX™ is an extreme-output version of the 3-in-1 Smarty Hybrid™ spot/beam/wash luminaire with the same ‘smart’ lamp technology but nearly twice as bright and loaded with even more design features.
|
product type |
Moving Light Discharge Hybrid
|
product link | |
product description |
FEATURES Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture Flex Lamp Technology from 370 to 480W plus Smart Hibernation with up to 4,000 Hour Lamp Life Full CMY Color Mixing System, Variable CTO, Color Wheel Creative FX Package: 8 Rotating and 15 Static Gobos, Dual Track Animation, Iris, 4x Prism on Dual Planes, 2x Frost Ultra-Fast Zoom: Beam 2° - 20° | Spot 3° - 30° | Wash 9° - 35° 2 Years / 4,000 Hours Ultimate Warranty** **First 2 Years of operation or 4,000 hours of use, whichever comes first, based on regular fixture/lamp maintenance. SOURCE Philips MSD Platinum 400 Flex 480W Lamp Variable Lamp Power 370/470/480W Automated Lamp Hibernation with Instant Recovery Up to 4,000 Hour Lamp Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming PHOTOMETRIC DATA 21,000+ Lumen Total Fixture Output 1.5° Beam: 1,784,448 LUX (165,781 FC) @5m (16.4ft) 3° Spot: 462,508 LUX (42,968 FC) @5m (16.4ft) Beam Zoom Range 2° - 20° Beam Angle 0.8° - 6.5° Field Angle 1.8° - 16.2° Spot Zoom Range 3° - 30° Beam Angle 1.7° - 14.8° Field Angle 3° - 26.5° Wash Zoom Range 9° - 35° Beam Angle 6.8° - 29° Field Angle 12.8° - 39.4° EFFECTS Beam, Spot and Wash Modes Motorized Zoom Dual Frost Filter for Light Frost/ Full Wash 4 Prisms on Dual Planes Iris CMY Color, Gobo, Prism Macros Motorized Focus with Auto-Focus Feature High Speed Shutter and Strobe COLOR Full CMY Color Mixing System Variable CTO 13 Position Colors Wheel GOBOS 2 Gobo Wheels 8 Interchangeable-Rotating / Indexing Glass Gobos 14 Static-Stamped Metal Gobos Dual Track Animation Wheel CONTROL / CONNECTIONS 2 DMX Channel Modes (27 / 44 Channels) (6) Button Touch Panel Full Color 180° Reversible LCD Menu Display DMX, RDM, Art-Net and sACN Protocol Support 5pin DMX In/Out RJ45 Ethernet In/Out IP65 Locking power cable In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 15.34” (389.8mm) Width: 17.53” (445.3mm) Vertical Height: 25.27” (642mm) Weight: 60.0 lbs. (27.2 kg) ELECTRICAL / THERMAL AC 100-240V - 50/60Hz 700W Max Power Consumption 14°F to 113°F (-10°C to 45°C) BTU/hr (+/- 10%) 2387 |
product code |
1237000115
|
order code |
1237000115
|
short, neutral tender spec text |
The luminaire shall be a yoke moving head with Philips™ MSD Platinum 400 Flex lamp and discharge lamp/ballast. Lumen output shall be 21,000 and lamp life shall be up to 4,000 hours. The luminaire shall include a power saving lamp hibernation mode and be able to run at three different wattages – 370, 470 and 480W – for power savings and increased efficiency. The luminaire shall house a motorized zoom capable of zoom ranges of 2° to 20° in beam mode, 3° to 30° in spot mode, and 9° to 35° in wash mode. The unit shall include a full CMY color mixing system and 13 dichroic colors including linear CTO-flag color correction. Two linear frost filters shall be included. The luminaire shall include 8 rotating, interchangeable glass and metal gobos and 15 static-stamped indexing metal gobos. A dual track bi-directional animation wheel shall be included. Four rotating and indexing prisms shall be available – 16-facet, 8-facet, 6-facet linear and 4-facet linear prisms – and prism morphing shall be possible. Dimming shall be 0-100% and a high-speed mechanical strobe and shutter shall be included. A motorized iris shall be included. The luminaire shall operate via DMX, RDM, sACN and ArtNET protocols. It shall include 5-pin DMX in/out, RJ45 ethernet in/out and Locking Power in/out connections. A USB firmware service port shall be included. The luminaire shall have a 6-button touch control panel and 180° reversible full-color LCD menu display that is battery powered. Max power consumption shall be 750W and a multi-voltage universal auto switching power supply shall be included. It shall measure 390mm x 445mm x 642mm (LxWxH) and weigh 24.3 kg.
GAEB
TEXT
|
Connectors | |
total number of DMX inputs |
1 pcs
|
total number of DMX outputs |
1 pcs
|
DMX connector types |
5pin
|
built-in Switch |
yes
|
Control | |
max Dimmer resolution |
16 bit
|
control channels, min |
27 ch
|
control channels, max |
44 ch
|
RDM |
yes
|
wireless dmx |
no
|
protocol-DMX |
both
|
protocol-Artnet |
both
|
Electrical | |
power consumption amps, max |
2.92 A
|
power consumption watt, max |
700.00 W
|
AC Volts, min |
100 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
IP rating |
20
|
operating temp, min |
-10.00 °C
|
operating temp, max |
45.00 °C
|
built-in dimmer |
other
|
power output connector |
Truecon
|
power input connector |
Truecon
|
cooling |
active
|
external PSU |
no
|
Mechanical | |
weight |
27.20 kg
|
width |
445.00 mm
|
height |
642.00 mm
|
length |
390.00 mm
|
pan range |
630 °
|
tilt range |
270 °
|
color |
black
|
truss mountable |
yes
|
recessed installation |
no
|
Optical | |
wattage per light source |
480.00 W
|
light source color temperature |
8000 K
|
optics/projection type |
Hyprid/Dual Optical System
|
shutter/strobe frequency, max |
18 Hz
|
variable/linear frost |
yes
|
color temperature, min |
8000 K
|
color temperature, max |
8000 K
|
secondary light source |
none
|
CMY colormixing |
dual flag
|
drop-in frosts |
1 pcs
|
max CRI |
80 CRI
|
output lumen, max |
21000 lm
|
beam angle/zoom, min |
2.00 °
|
beam angle/zoom, max |
35.00 °
|
light source |
Discharge
|
Number of light sources |
1 pcs
|
beam shape |
round
|
fixed/virtual colorwheels |
1 pcs
|
gobowheels total |
2 pcs
|
rotating gobowheels |
1 pcs
|
number of fixed gobos |
15 pcs
|
number of rotating gobos |
8 pcs
|
beam shapers/framing/barndoors |
no
|
prism |
multiple (3)
|
other beam effects |
yes
|
separate CTO wheel |
dual flag
|
prism morphing |
yes
|
animation wheels |
2 pcs
|
animation wheel functionality |
continous rotation
|
out lumen in silent mode. Max |
21000 lm
|
Luminous efficacy |
43.75 lm/W
|
